Builder: Halter Marine

Hull 208



US Doc #537890



Currently in Alaska

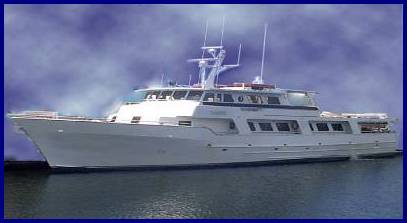

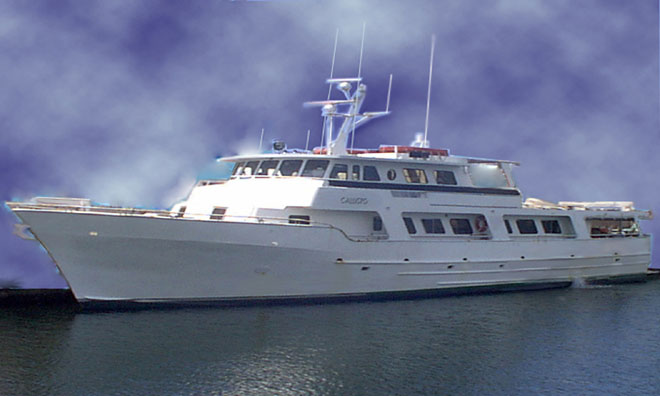

The Callisto, a 110' twin diesel powered expiditionary yacht

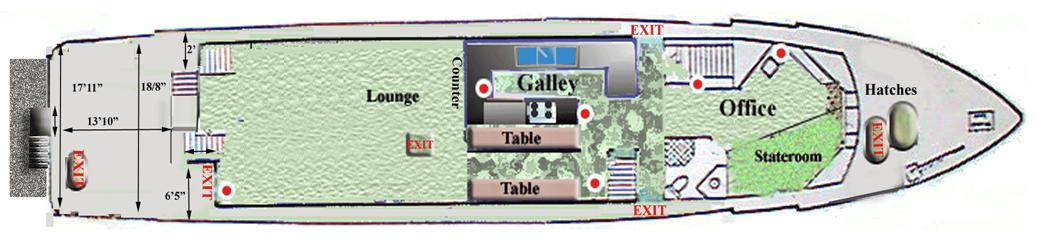

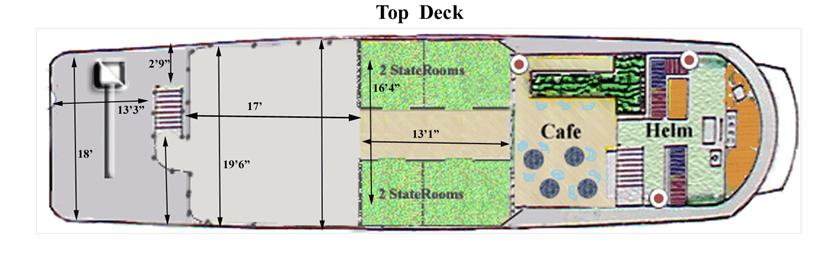

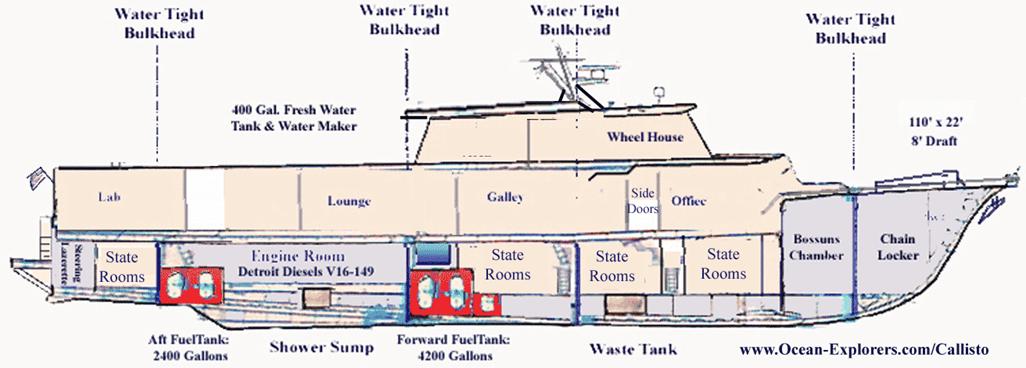

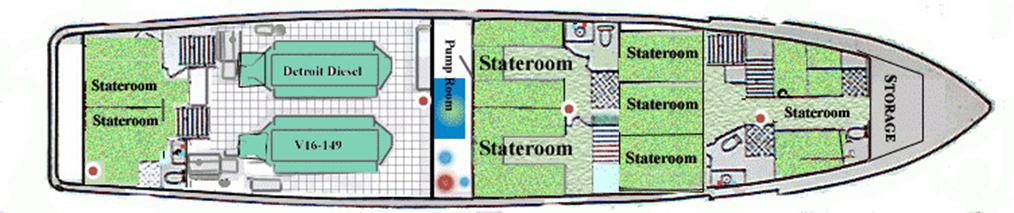

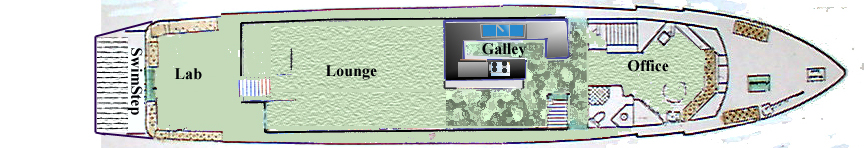

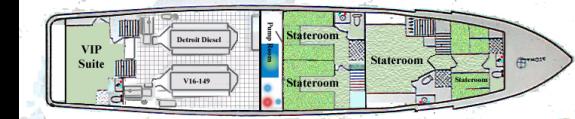

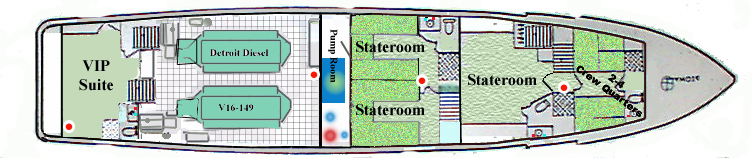

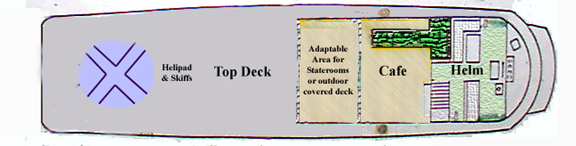

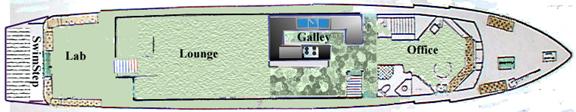

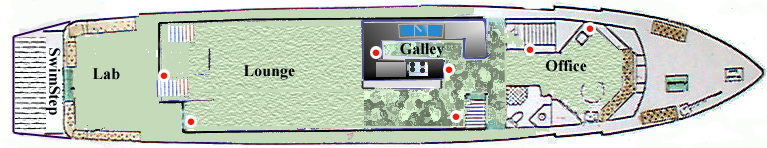

Callisto Floor Plan





Decks

www.Ocean-Explorers.com/Callisto



USCG Inspected Vessel (COI to 2010)

Lounge



Office

Twin Detroit V16-149 Diesel @ 1000hp each

40 & 55KW Detroit Gensets,

6000 gallon fuel capacity

12 Knot cruise ● 1000 Mile Range

110’ x 22’ US Corten Steel Hull ● Aluminum superstructure



StateRooms



WheelHouse

Automatic Life raft and Survival Suits for 25

Bow & Aft Davits ● High Speed & Standard Anchor Winches

Swimstep ● Covered Lab ● Large Open Top Deck

Large Lounge, Office & Café’ ● Commercial Galley



Accommodations up to 21 persons overnight



Keel Coolers



Engine Room



Props



Haulout



Expedition photos





 2006 Photos by Byron Tomingas

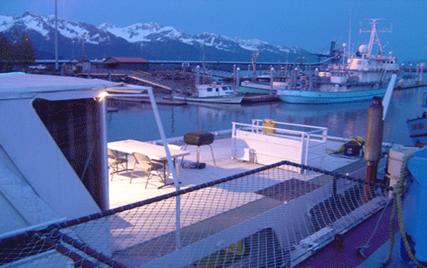

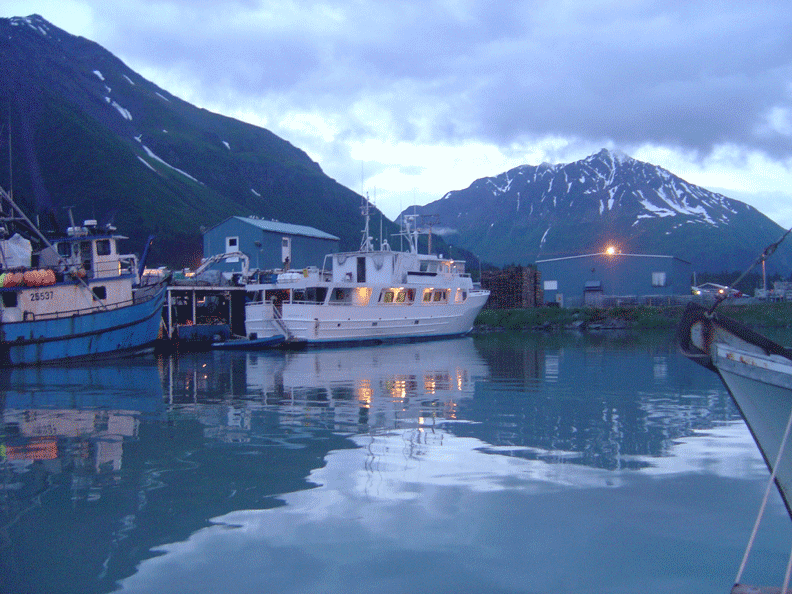

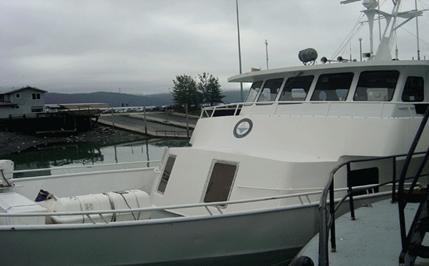

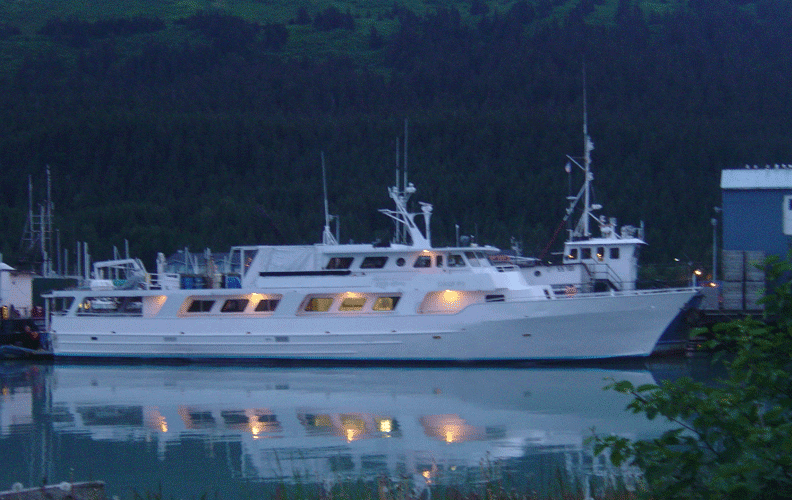

In Port at Seward Alaska August 2006.  Long sleek lines make her very

Pleasing to the eye.

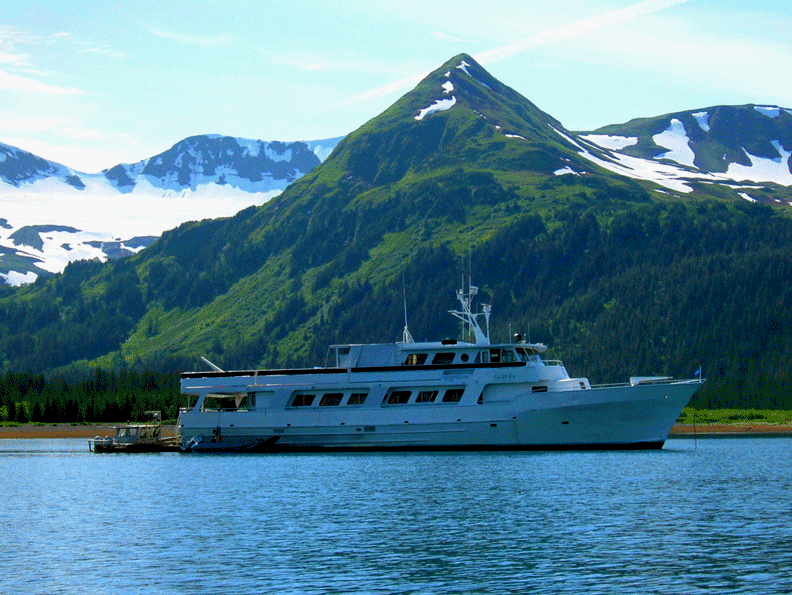

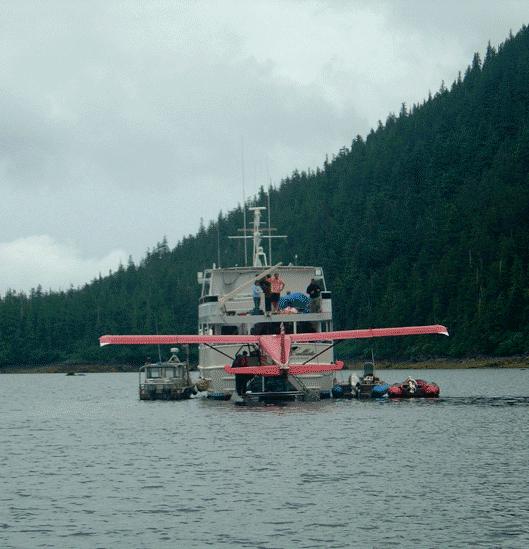

At Port Chalmers bay on Montague Island in Prince William Sound Alaska July 2006

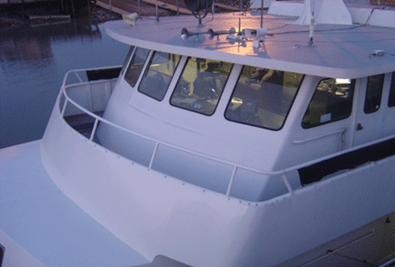

Left to Right; The Portuguese Bridge, the aft top deck

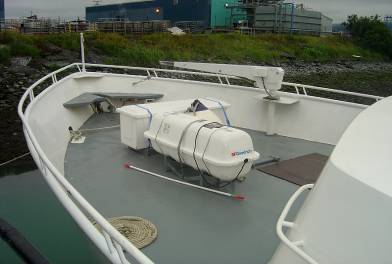

The bow with a 25 Person automatic life raft,

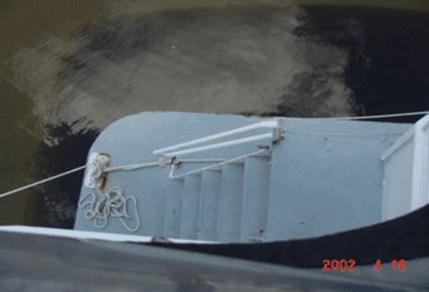

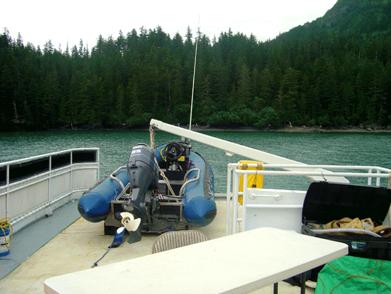

the swim step, Aft top deck with RIB Skiff & Davit

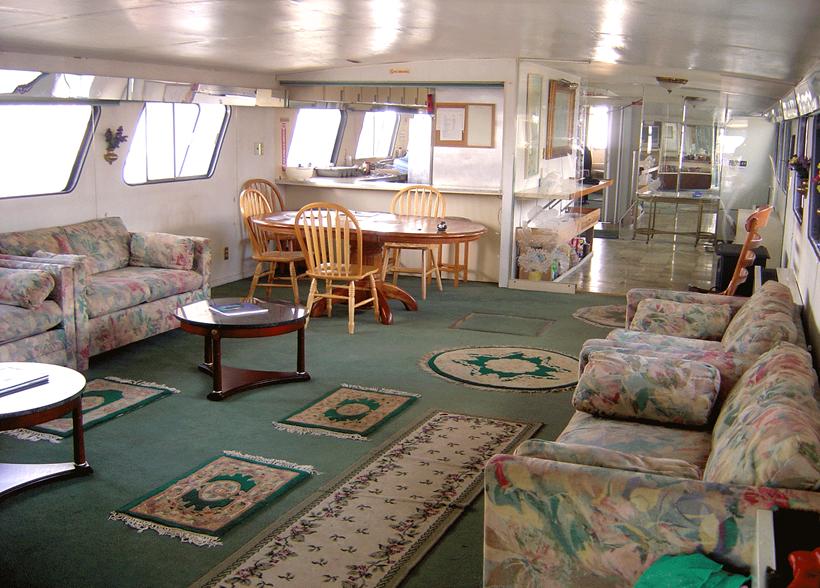

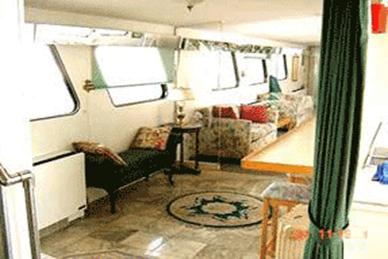

The main lounge and dining area, spacious and comfortable, appointed

With marble tables and side lighting covered by mirrors that reflect

the surrounding scenery.  Marine art etched plexiglass ushers the way

forward.



The current seating arrangement is for 16 people not counting the

Four bar stools at the counter.



The galley can be seen just beyond the dining table

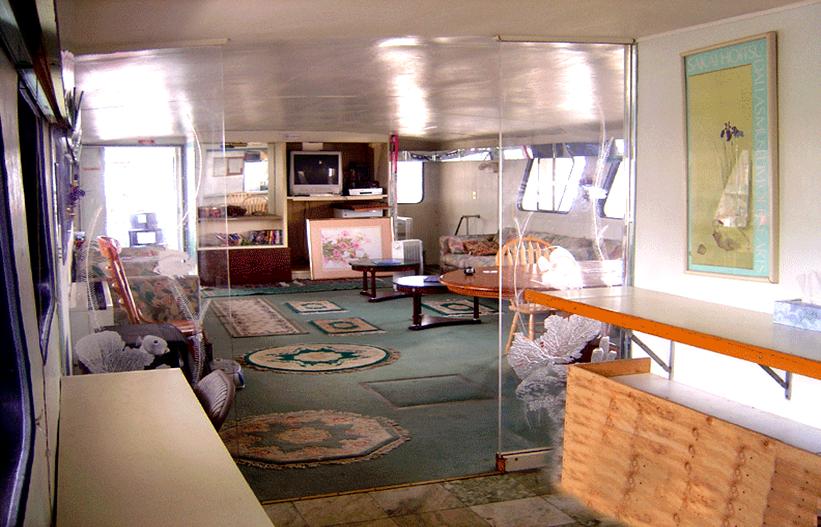

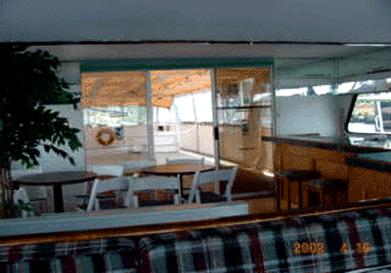

The lounge facing aft. This area has a marble floor

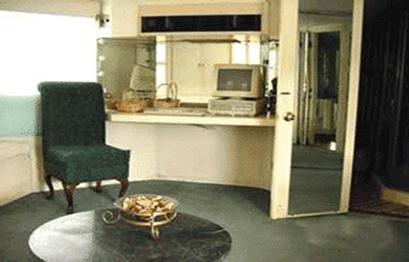

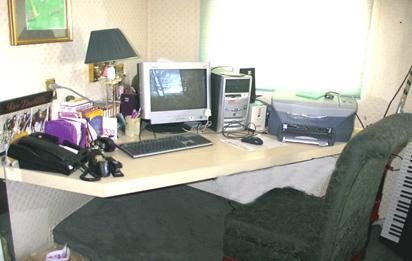

The forward Office/stateroom with forward and side windows and large mirrors

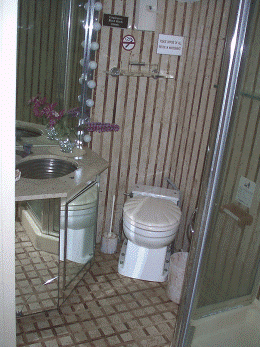

The bathroom in the forward office area, marble floors and walls.

One of five Staterooms, there is a bathroom with shower in each stateroom area

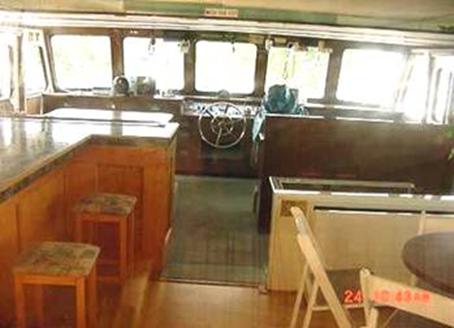

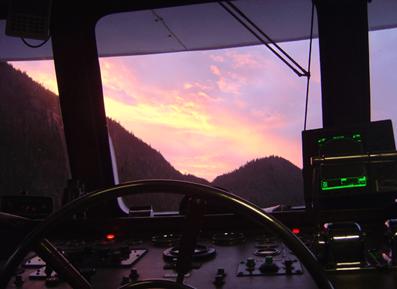

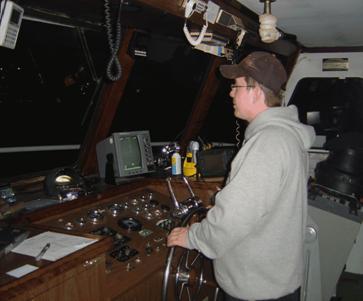

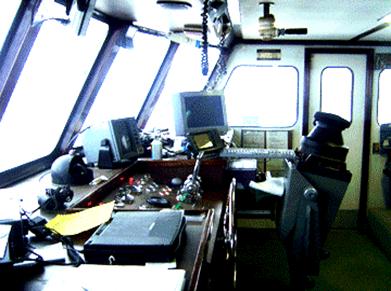

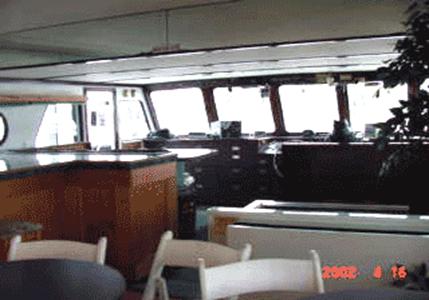

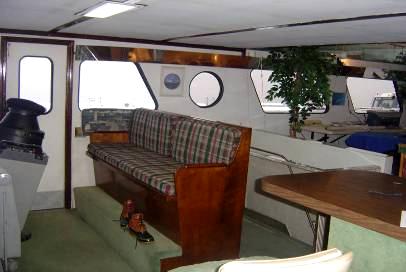

THE WHEEL HOUSE; HELM & CAFÉ

Features; autopilot, NAIAD Stabilizers, 2 radars, GPS, 3 VHS,

Fish finder, depth meter, SSB, Satellite Phone



The Café’/bar has a marble counter top on oak paneling, seating for 10

sliding glass doors out to the back deck

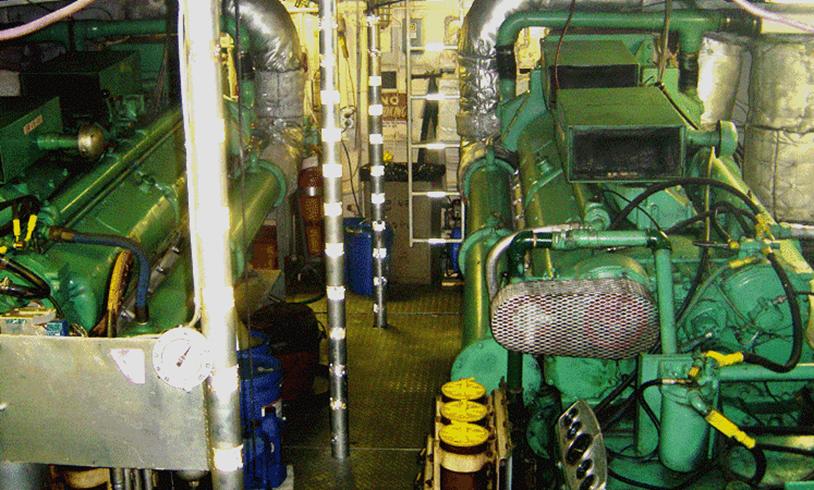

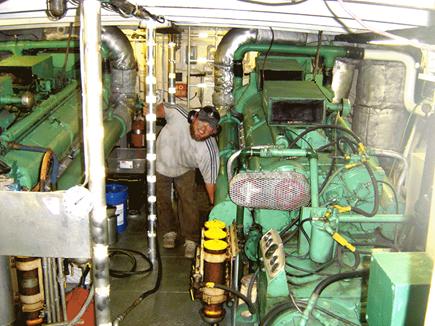

Twin Detroit 149-V16 Natural 2 stroke Diesels @ 1000hp each

Triple Racors individually valved for on the fly filter changes

Air starters, Twin Disk quick shift transmissions with 4” shafts

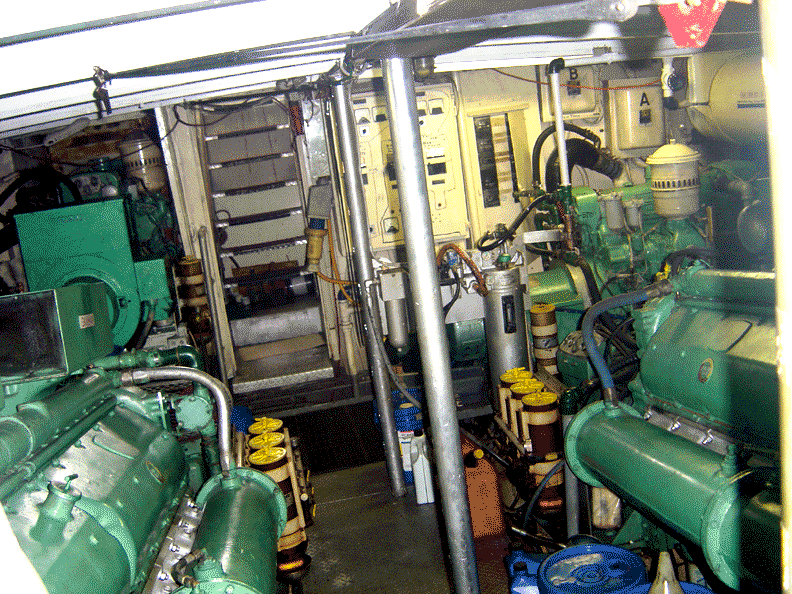

Looking aft toward the main electric panel and Detroit Generators 55kw & 40kw

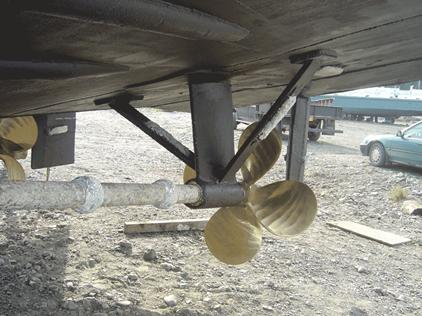

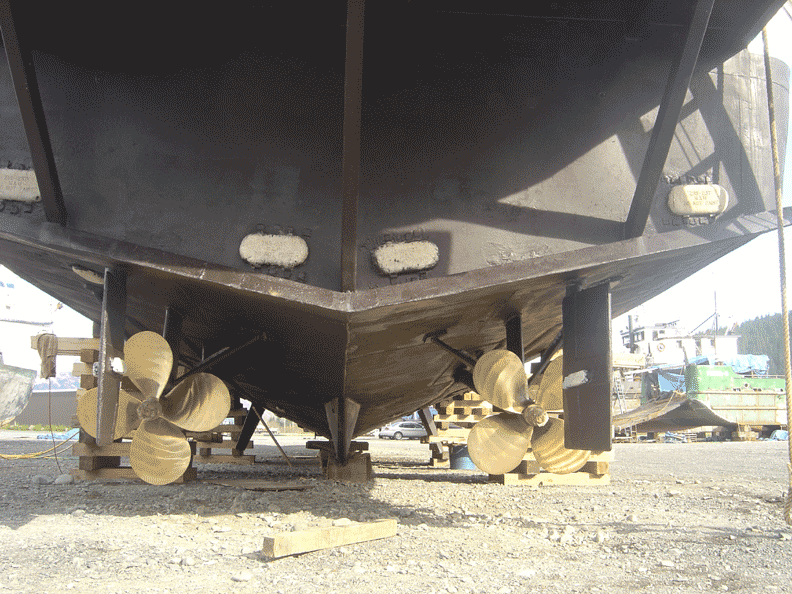

Workhorse props, twin rudders, swimstep struts

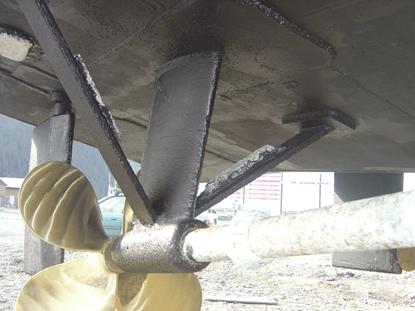

Heavy braced prop struts

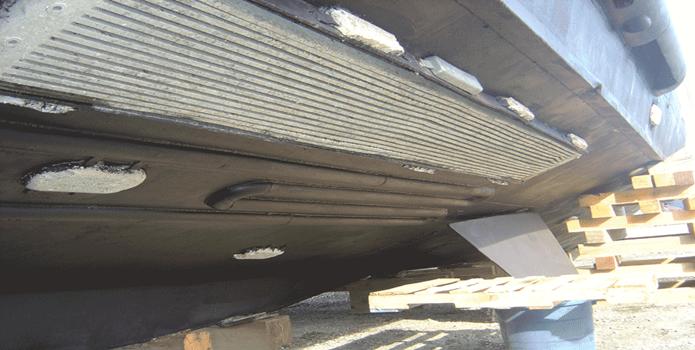

Fernstrum D-16 Keel coolers

Half tube Generator keel coolers just below Fernstrums

Naiad Stabilizer fin

Sea chest (raw water intake) is just under the Stabilizer Fin

Tube in top right corner is the main engines exhaust baffle

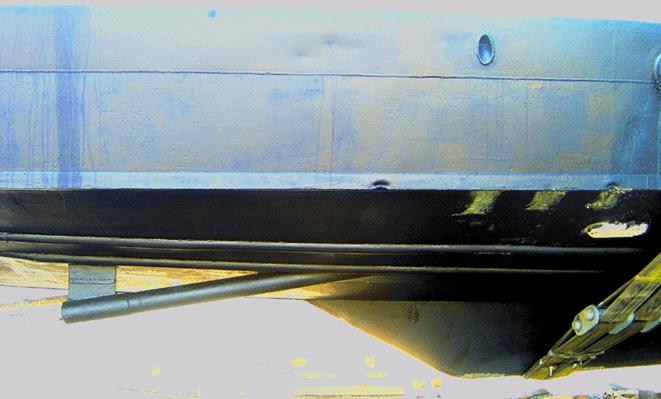

Prop shaft and Skeg location detail Starboard side

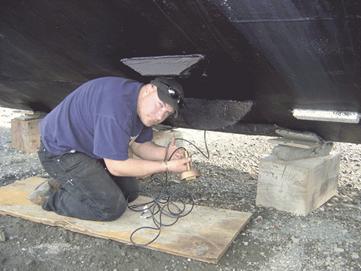

New tranducer for the Fish Finder

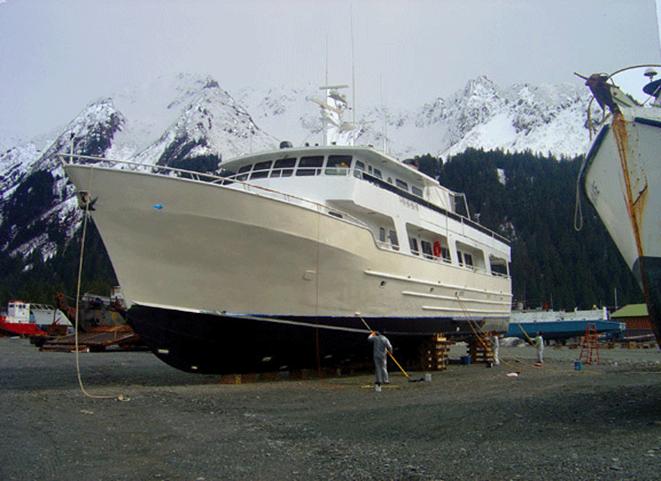

Priming (epoxy) the hull in Seward, May 2006

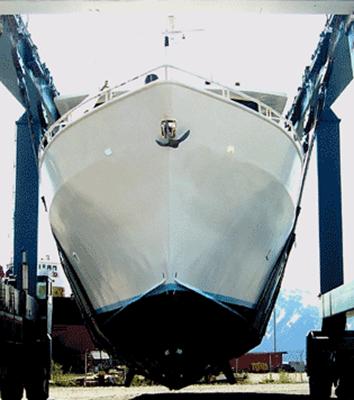

140 Ton Splash time with fresh paint June 2006





The Callisto was located in Key West Florida from 2002 to 2005

The Callisto cruised to Alaska in April May of 2005

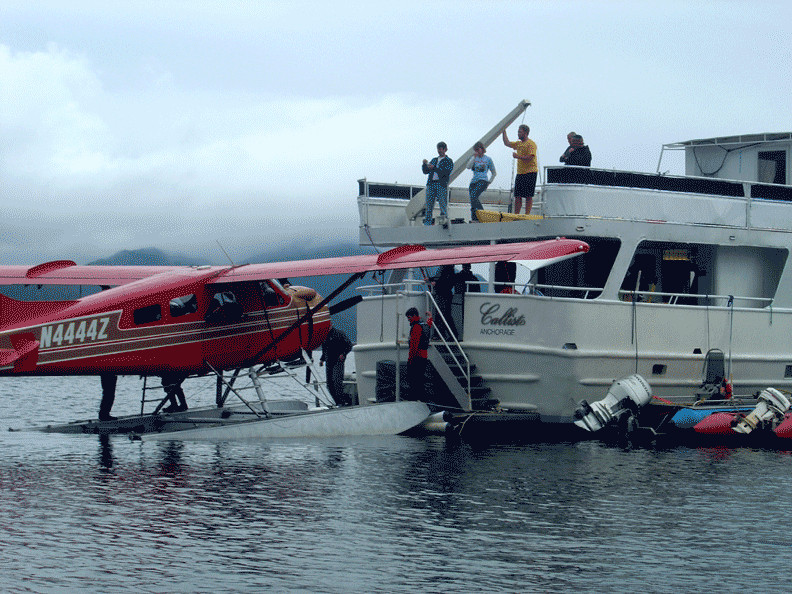

The Callisto secured its COI in 2005, worked successfully out of Whittier Alaska

in both 2005 and 2006 doing science research projects in Prince William Sound Alaska.



 Extensive Operations Manual

 Callisto Operation Manual












Look through the Equipment Manuals in Wheel House drawers



INDEX

Numbers. 3

Callisto QUICK STARTUP: 4

Driving Tips. 5

NOTES & TROUBLE SHOOTING.. 6

Shore Power. 7

Generator Power. 8

Port Generator: 8

Electric Panels

Sea Chest. 13

Starting the Callisto

Wheelhouse Startup Guide: 19

Autopilot: 20

Air Conditioning & Heating (HVAC): 22

NAIAD Stabilizers: 23

Fuel & Oil Lines: 23

MIG/TIG/Arc Welder: 23

Anchors. 23

Pumps: 24

Lubrication Points. 24

Air Compressors. 25

Engine Room Notes. 26

Water Maker. 27

Daily Task Log. 30

Fuel Tank Inch to Gallon Chart. 31

US Documentation. 32

COI June 2005 to 2010. 33

Letterhead Callisto.. 34
